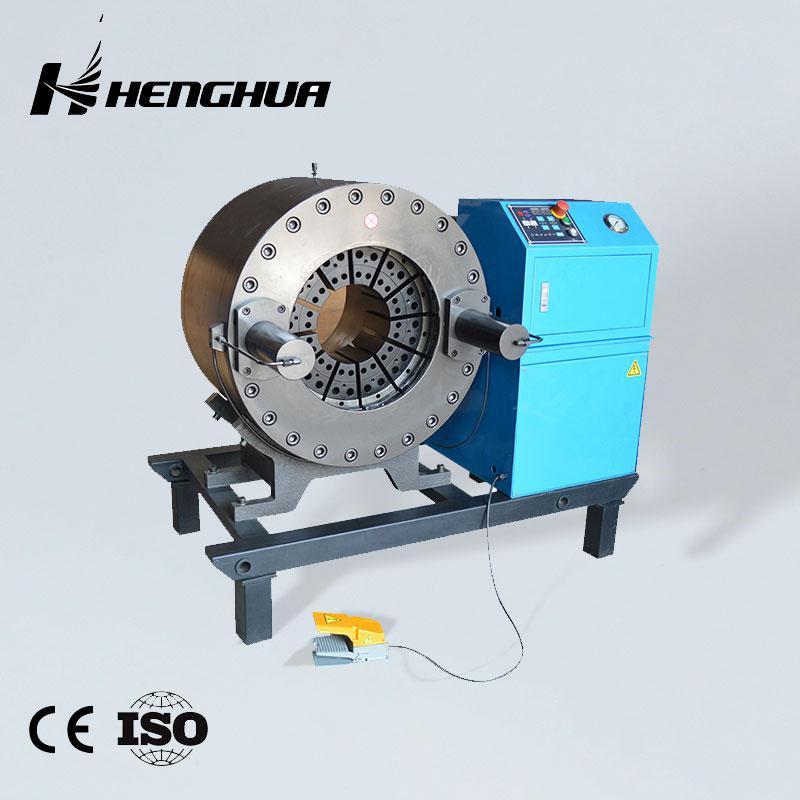

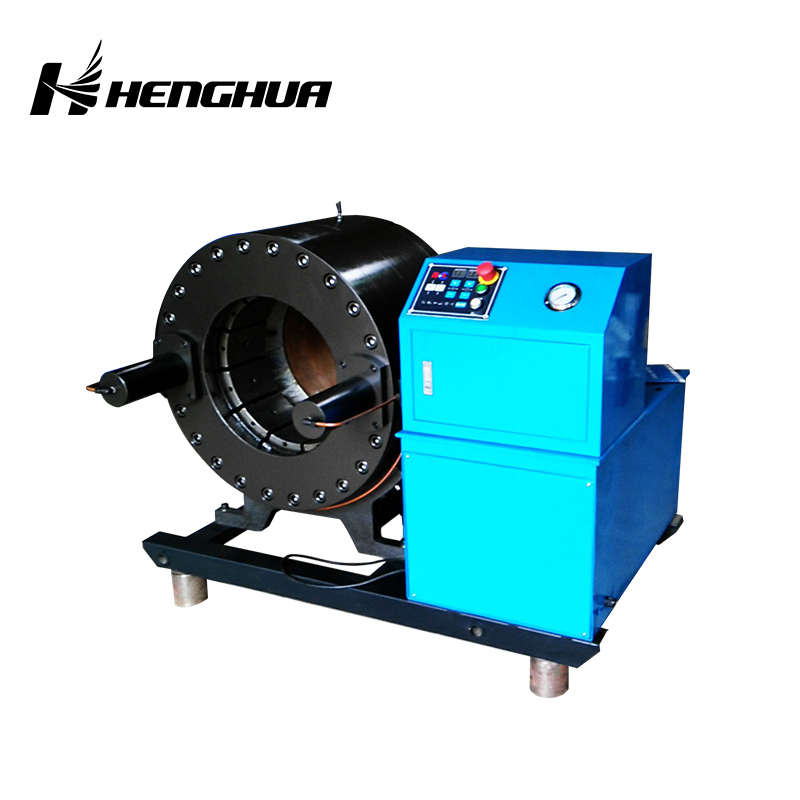

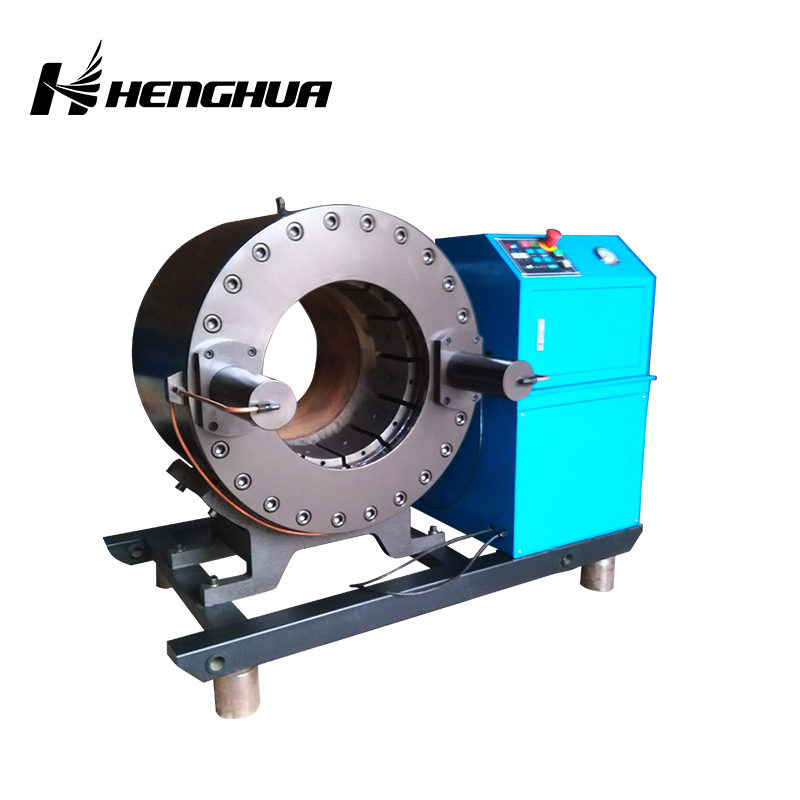

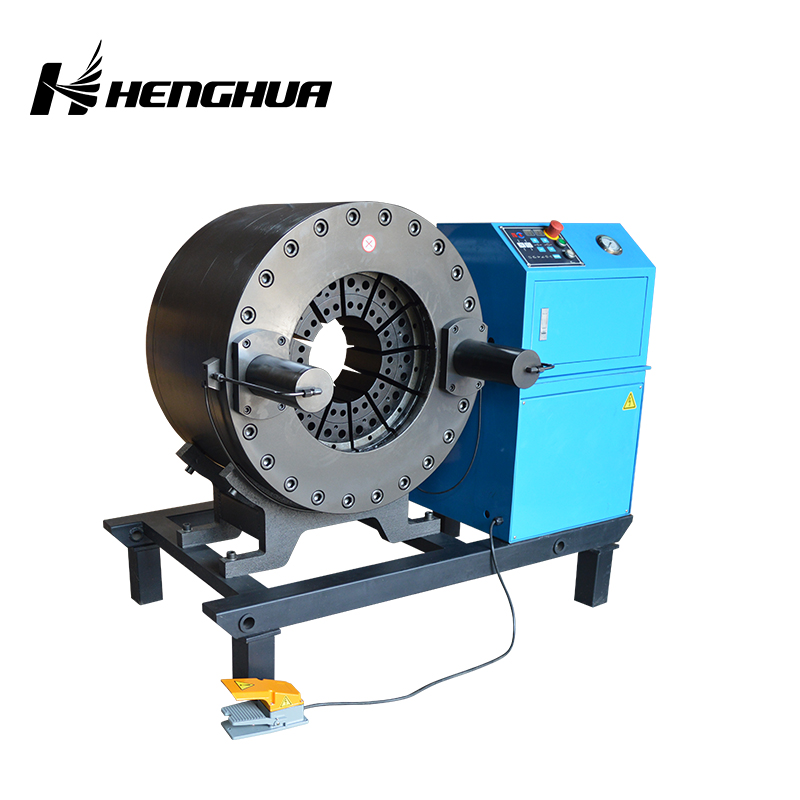

HF120F/240F 102-230/480mm 380v Big Diameter Hydraulic Hose Crimping Machine

Additional information

Model

HF-120F/240F

Max hose size

8"4S/16"

Swaging range

Φ102-230/480

Master die shoe length

170/200mm

Standard voltage

380V/50Hz

Motor power

5.5kW

Optional voltage &motor

220V/440V

Pump

36L/min

Number of swaging / hour

400

Noise level

75dB

Max opening

Φ+43/66mm

Crimping force

20610/38000kN

Electric limit switch

include

Electronic control

include

Electric pedal

include

Manual change

include

Dimensions L x W x H

1250x820x1250mm

Weight without oil

1300/1800Kg

Description

Hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

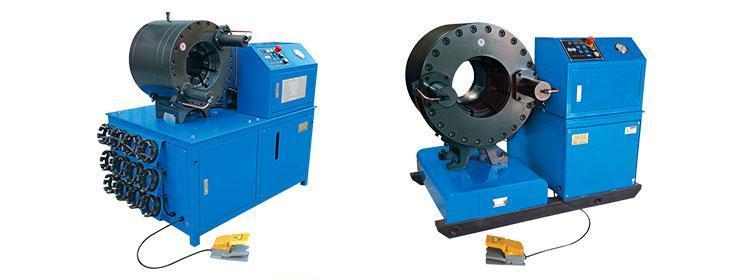

ModelHF-60AHF-120F/240F
Max hose size4″6S8″4S/16″
Swaging rangeΦ 6-170mmΦ102-230/480
Master die shoe length120mm170/200mm
Standard voltage380V/50Hz380V/50Hz
Motor power5.5kW5.5kW
Optional voltage &motor220V/2.2kW220V/440V
Pump36L/min36L/min
Number of swaging / hour800400
Noise level75dB75dB
Max openingΦ+35mmΦ+43/66mm
Crimping force12560kN20610/38000kN
Electric limit switchincludeinclude
Electronic controlincludeinclude
Electric pedalincludeinclude
Manual changeincludeinclude
Dimensions L x W x H1100x700x1200mm1250x820x1250mm
Weight without oil980Kg1300/1800Kg

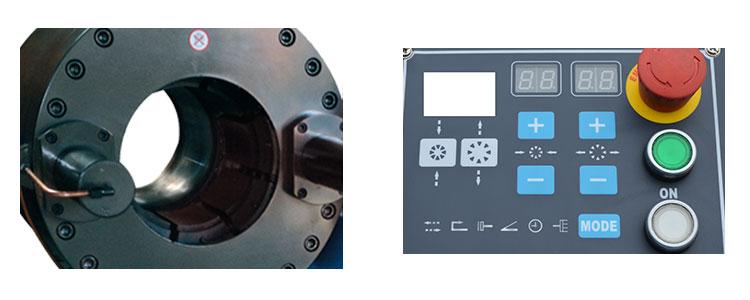

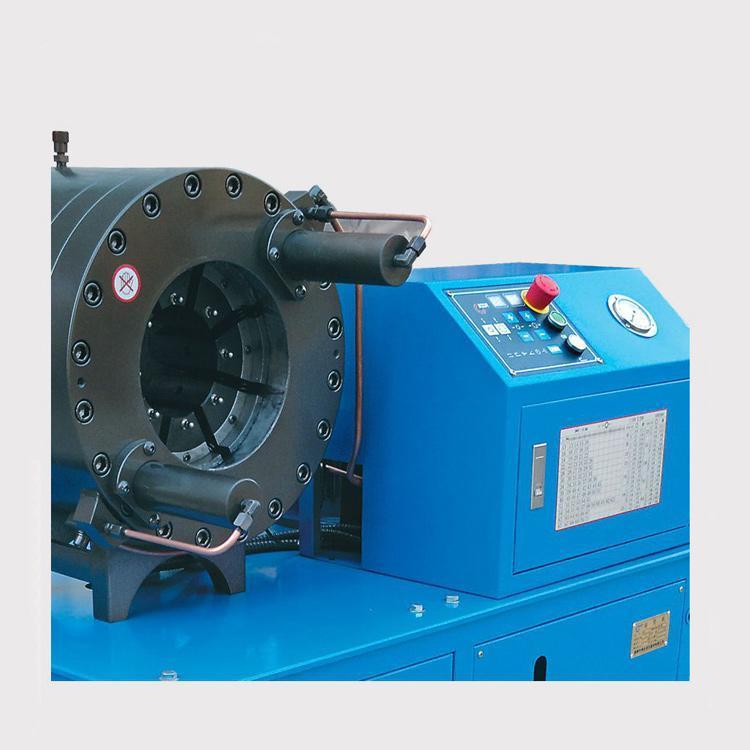

Machine Head

Front cover, cylinder, and piston use Chrome40, forging integrity, increase its fatigue resistance.

Control Panel

Automatic and semi-automatic adjust, safety in use and high efficient.

Additional information

Model

HF-120F/240F

Max hose size

8"4S/16"

Swaging range

Φ102-230/480

Master die shoe length

170/200mm

Standard voltage

380V/50Hz

Motor power

5.5kW

Optional voltage &motor

220V/440V

Pump

36L/min

Number of swaging / hour

400

Noise level

75dB

Max opening

Φ+43/66mm

Crimping force

20610/38000kN

Electric limit switch

include

Electronic control

include

Electric pedal

include

Manual change

include

Dimensions L x W x H

1250x820x1250mm

Weight without oil

1300/1800Kg

Reviews

There are no reviews yet.

Be the first to review “HF120F/240F 102-230/480mm 380v Big Diameter Hydraulic Hose Crimping Machine”

Your email address will not be published. Required fields are marked *

Request a Quote Form

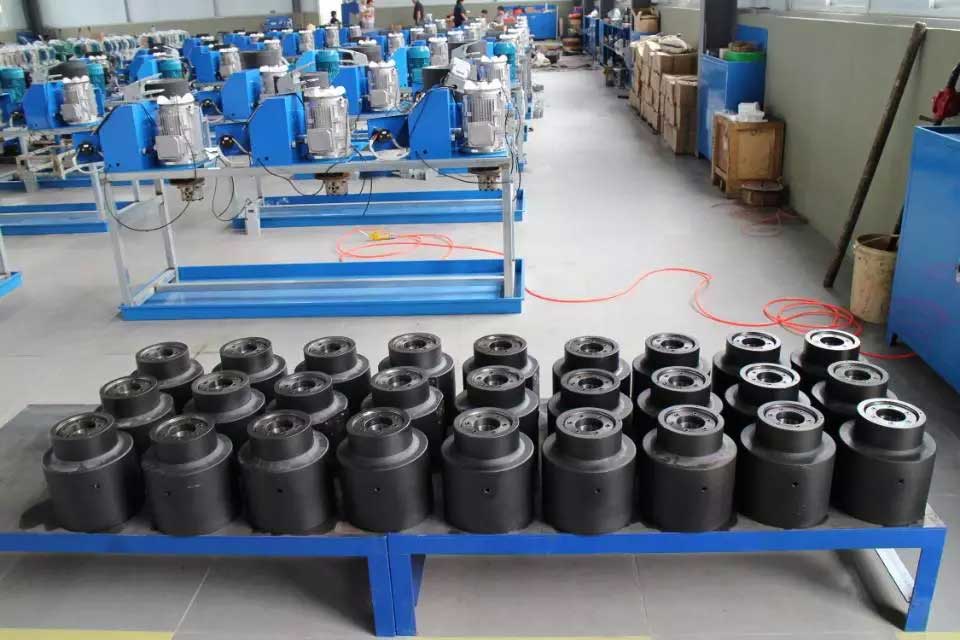

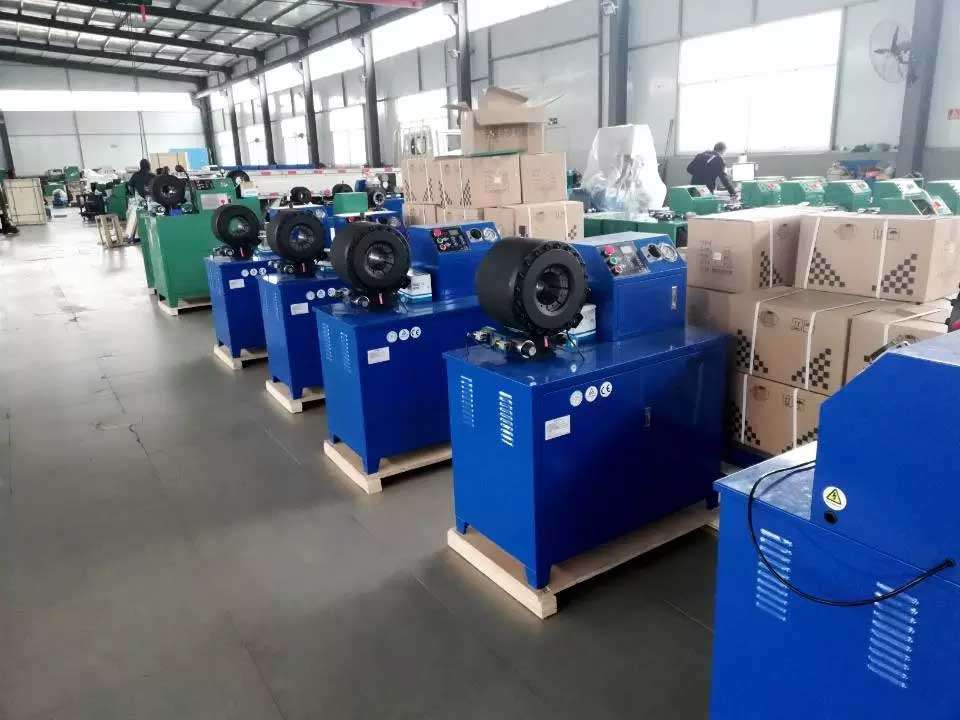

Factory Tour
