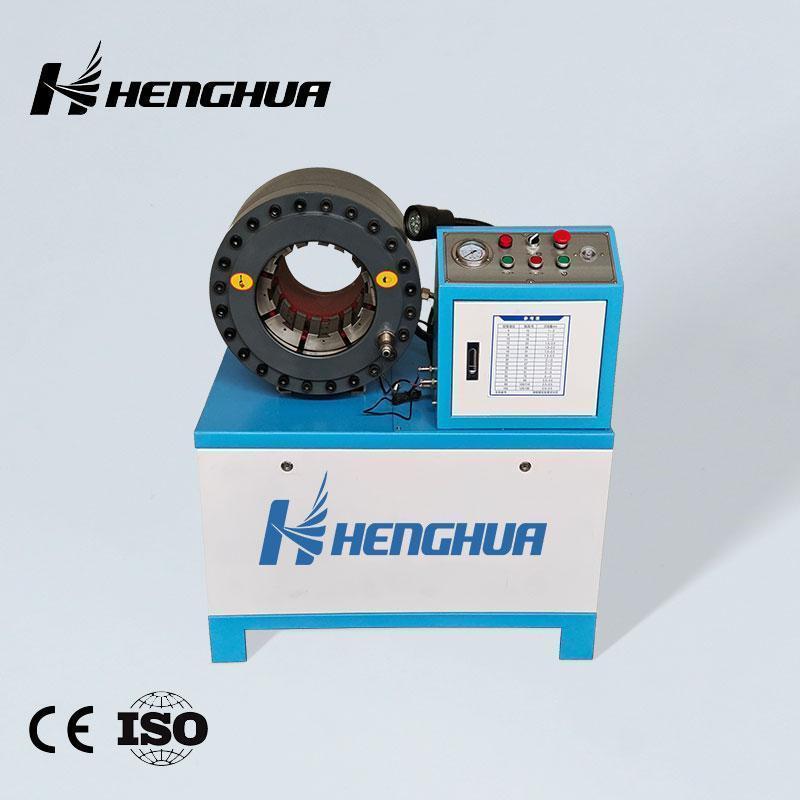

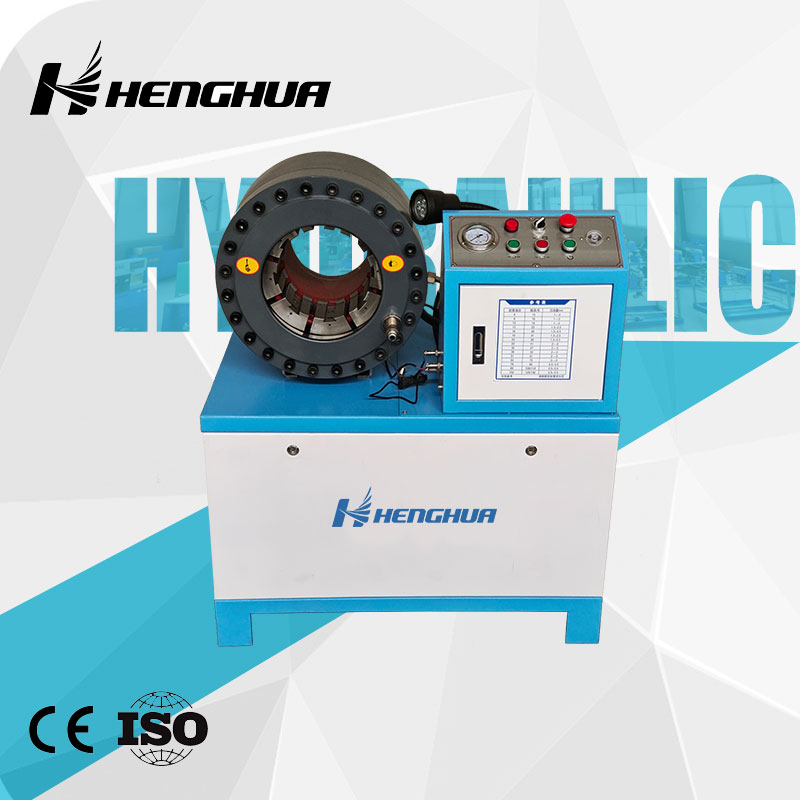

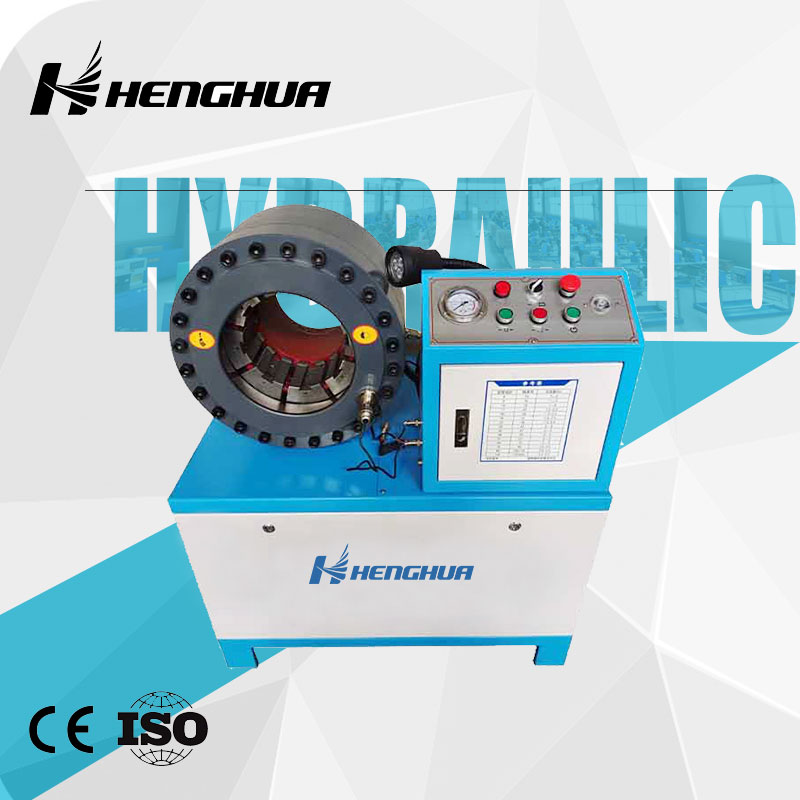

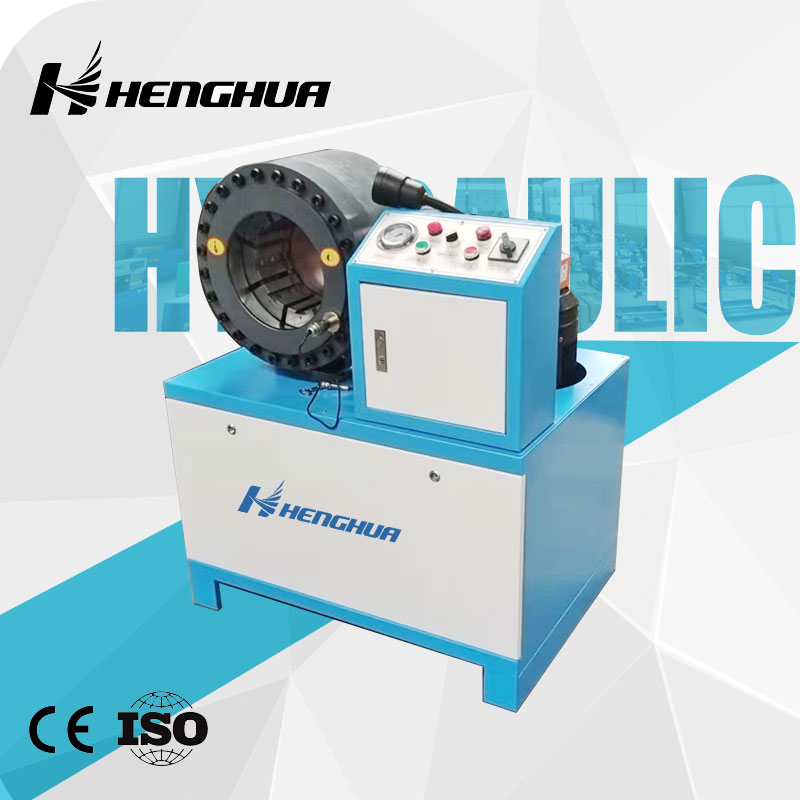

DX102 6~102m( 1/4~4" ) Hose Pipe Crimper Economical 4 Inch 6Inch Hydraulic Press Hose Crimping Machine
Additional information
| Model | DX102 |
|---|---|
| Crimping range | 6~102m( 1/4~4" ) |
| Max crimping Force | 920T |
| Rated Pressure | 31.5Mpa |
| Weight | 650kg |
| Mold Quantity | 17Sets |
| Power | 4KW/5.5KW/7.5KW |
| Voltage | 380V or customized |
| Scale accuracy | 0.01mm |
| Overall dimensions | 620*600*1000mm |
Additional information
| Model | DX102 |
|---|---|
| Crimping range | 6~102m( 1/4~4" ) |
| Max crimping Force | 920T |
| Rated Pressure | 31.5Mpa |
| Weight | 650kg |
| Mold Quantity | 17Sets |
| Power | 4KW/5.5KW/7.5KW |
| Voltage | 380V or customized |
| Scale accuracy | 0.01mm |
| Overall dimensions | 620*600*1000mm |
