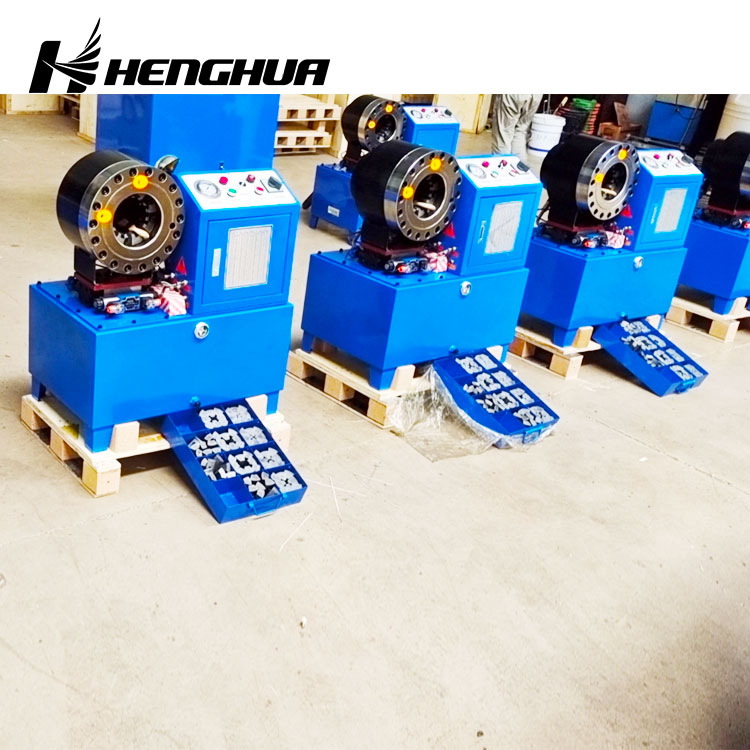

6 Core Patent 5 Second Fast Precise Press 10 Sets Free Dies 1/4"-2" Hydraulic Hose Crimping Pressing Machine

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp
Share on email

Additional information

Model

DX68

Crimping range

6-51mm(1/4" ~2")

Max crimping Force

449T

Rated Pressure

31.5MPa

Weight

250kg

Mold Quantity

10 sets

Power

3KW/4KW

Voltage

220V/380V

Scale accuracy

0.02mm

Overall dimensions

670*490*780mm

Description

Brief Introduction

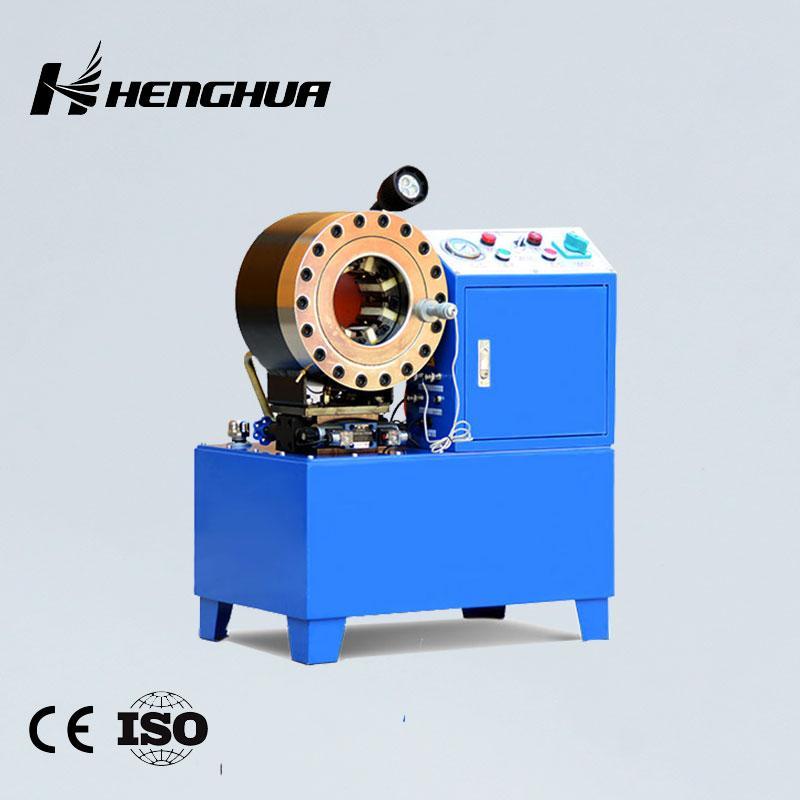

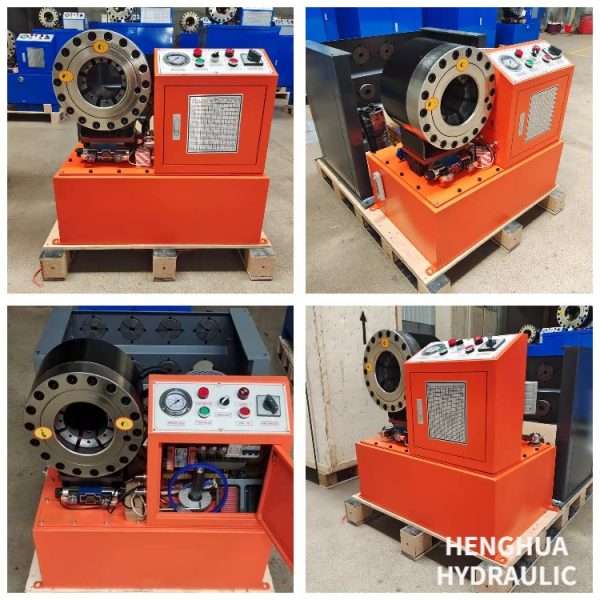

Model DX68 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.


Main Technical Feature

Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T
Scale accuracy: 0.02mm Rated pressure: 31.5 MPa
Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm
hose crimping machine
Model DX68 DX76 DX102 DX150
Crimping range 6~51mm(1/4″ ~2″) 6~76mm( 1/4~3″ ) 6~102m( 1/4~4″ ) 6-150mm(1/4~6″)
Max crimping Force 449T 500T 1400T 2500T
Rated Pressure 31.5MPa 50Mpa 31.5Mpa 31.5Mpa
Weight 250kg 300kg 520kg 900kg
Mold Quantity 10 sets 13Sets 16Sets 17Sets
Power 3KW/4KW  4KW 4KW/5.5KW/7.5KW 4KW/5.5KW/7.5KW
Voltage 220V/380V 240V / 380V 380V or customized 380V or customized
Scale accuracy 0.01mm 0.01mm 0.01mm 0.01mm
Overall dimensions 670*490*780mm 730*470*930mm 900*790*1070mm 1030*630* 1160mm

Main Technical Feature

1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation

Notices

1.When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.
2.Prevent tool and other foreign matter from entering the locking head.
3.After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.
4.When working, the hand should not stretch into the locking head.
5.The power supply must be switched off when maintenance is done.

Maintenance

The hydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insuf- ficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.
The locking head shall keep internal cleanliness. Avoid the foreign matters during processing to enter into the locking head oil cylinder via the mould to affect the normal use. Wipe out the foreign matters, which are brought by the mould body in time when buckling the joint.
Frequently fill suitable grease into the mould body for lubrication.

Promise

We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.
