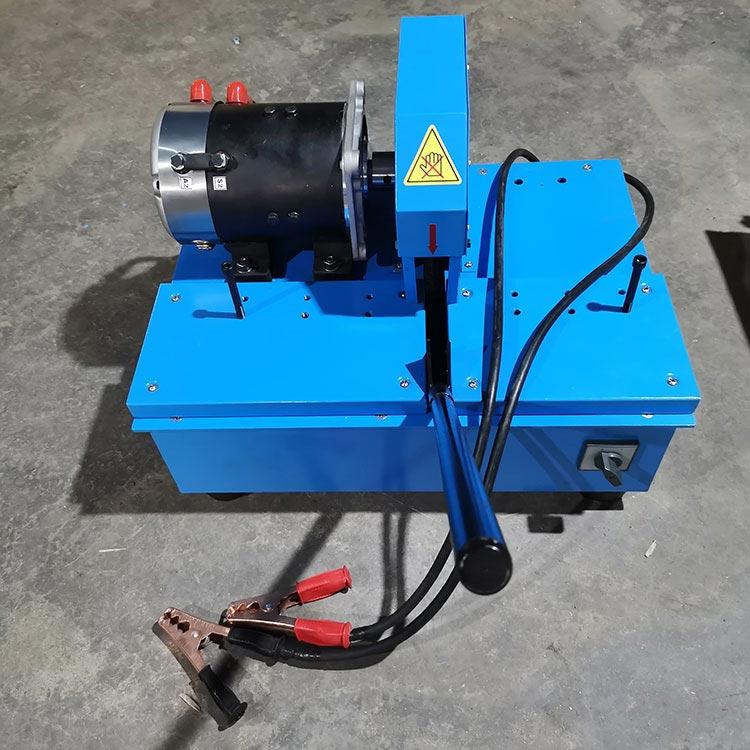

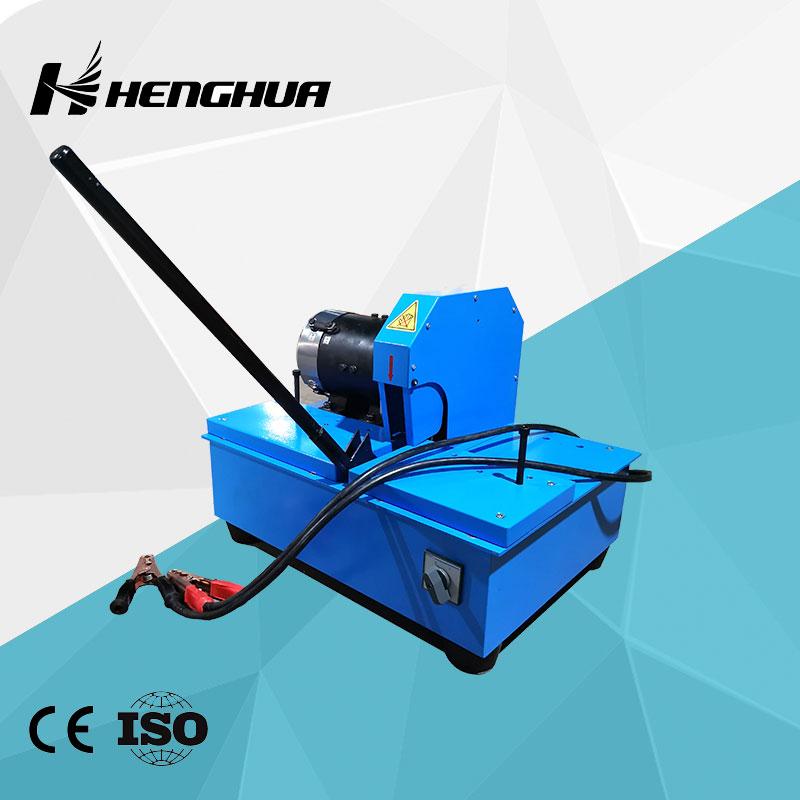

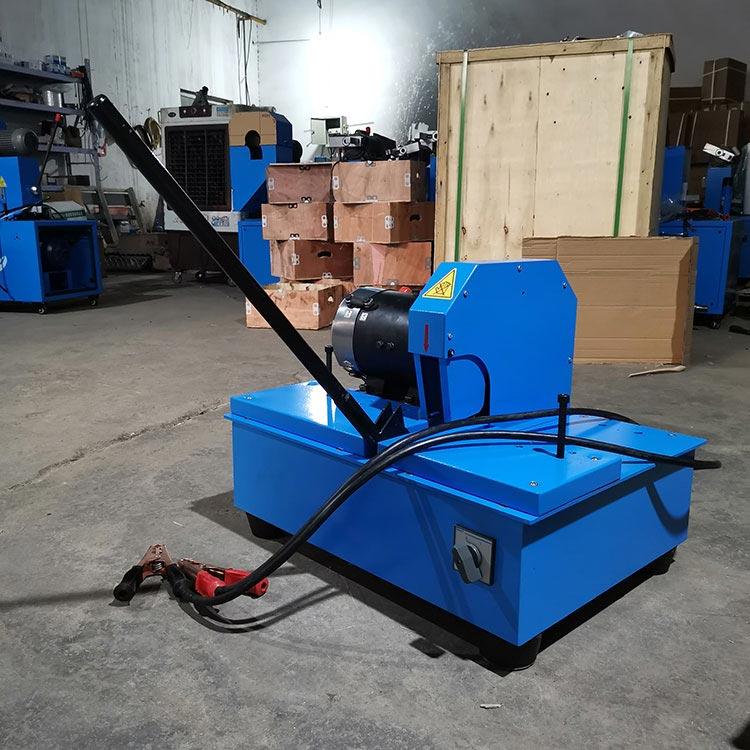

HC5 Vehicle Portable Automatic Hydraulic Hose Cutter Hose Pipe Cutting Machine

Additional information

Model

HC5

Cutting range

6-51mm (hose inner diameter)

Motor power

3KW

Voltage

12V /24V (optional)

Motor RPM

3000 RPM

Machine size

640x530x460mm

Package size

660x620x520mm

Net weight

58 kgs

Gross weight

75 kgs

Description

Hose cutting machines from HENGHUA HYDRAULIC have been with the highest precision and robustness. The solid and compactly built tools are characterized by their safe and high quality cutting function.A characteristic feature is the positioning of the exceptionally sharp cutting blades close to the powerful motors. Vibrations are thus significantly reduced – one of the reasons for the extremely long service life and low maintenance requirements. Users also appreciate the almost chip-free cutting and the unusually low smoke emission. The low energy consumption contributes to the high cost-effectiveness, especially in series production. CE-compliant brake motors and non-obstructive safety cladding ensure that nothing is left to be desired in terms of safety.



This hose cutter was specially designed for mobile van use. SIMPLE, COMPACT, LIGHT, RELIABLE AND POWERFUL are the key advantages of this unit already used by some of the major hose van companies in the world. It has a small foot print, to save space in the back of the vehicle, a robust design with high quality slotted blade, and is capable of cutting up to 1-1/4″ hydraulic hose or 2″ industrial hoses.

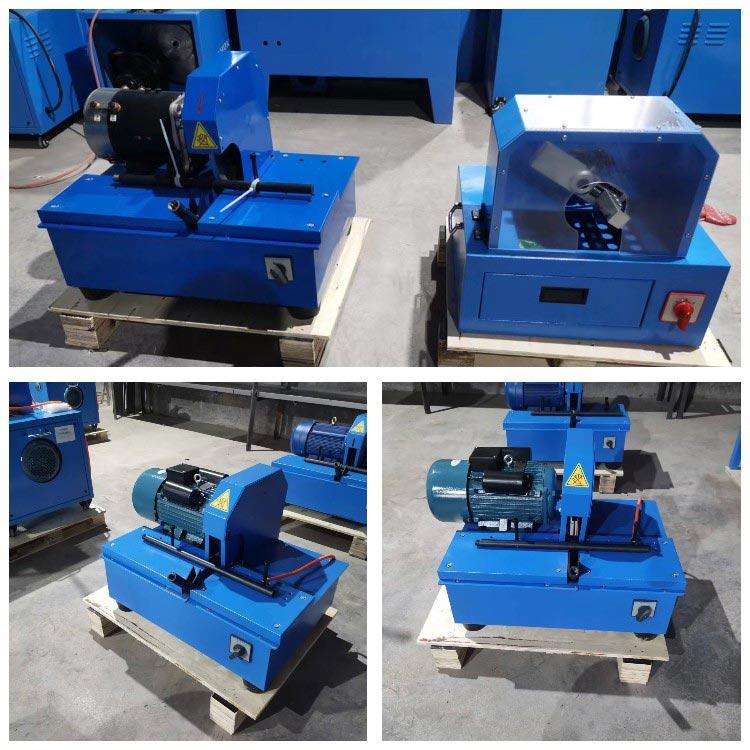

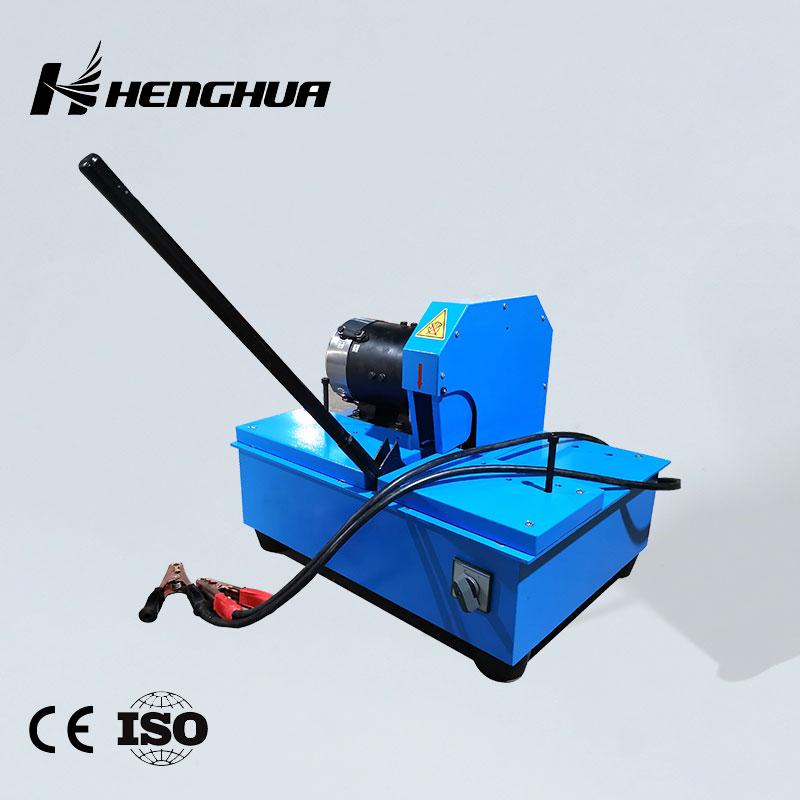

HC5 Hose Cutting Machine

HC5 Hose Cutting Machine

HC5 Hose Cutting Machine

Additional information

Model

HC5

Cutting range

6-51mm (hose inner diameter)

Motor power

3KW

Voltage

12V /24V (optional)

Motor RPM

3000 RPM

Machine size

640x530x460mm

Package size

660x620x520mm

Net weight

58 kgs

Gross weight

75 kgs
