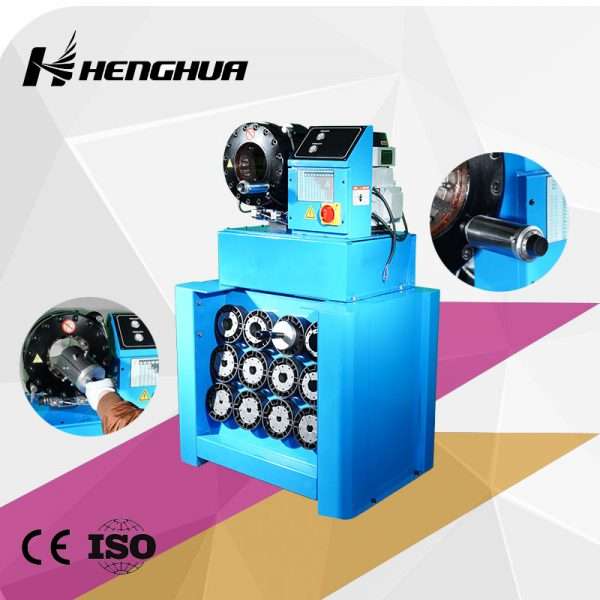

P52 6~51mm ( 1/4~2" ) Finn Power Hydraulic Rubber Hose Crimping Pipe Press Machine

Additional information

Model

P52

Crimping Range (Inner Diameter)

6~51mm ( 1/4~2" )

Free Dies

12 Sets (14 16 20 22 26 30 38 46 51 54 64 69)

Accuracy

0.01mm

Volume of oil tank

2.5L / 5L / 10L (Optional)

System Pressure

26MPa / 31.5MPa(Optional)

Motor Power

3kW (as your requirements)

Voltage

20V/240V/380V/415V (Optional)

Buckling Pressure

640T

Efficiency

250pcs/h

Maximum Open Diameter

114mm

The max open tolerance

± 30mm

Hydraulic oil

46#

Net Weight

350KG

Gross Weight

365KG

Package Dimension

700*900*1400 mm

quickly change

including

Description

The P52 hose crimping machine is widely used in hose fitting assembly workshop or on-site repairs service, it may be the most classic equipment for pressing 1/4” to 2” 4 layers hydraulic hoses. The advanced technology make the crimper offer high accurate fabrication and rapid crimping cycles. There are 13 sets of standard dies, different sizes of dies makes the hose crimper become multipurpose machinery. In the meanwhile, P52 is equipped with a die rack and quick change tool, they offer lots of convenience to the operators.

hose press machine

P52 FINN POWER HOSE CRIMPING MACHINE
Crimping Range (Inner Diameter):6~51mm ( 1/4~2″ )
Free Dies:12 Sets (14  16  20  22  26  30   38  46  51  54  64  69)
Accuracy:0.01mm
Volume of oil tank:2.5L / 5L / 10L (Optional)
System Pressure:26MPa / 31.5MPa(Optional)
Motor Power (as your requirements):3kW
Voltage (as your requirements):220V/240V/380V/415V (Optional)
Buckling Pressure:640T
Efficiency:250pcs/h
Maximum Open Diameter:114mm
The max open tolerance:± 30mm
Hydraulic oil:46#
Net Weight:350KG
Gross Weight:365KG
Package Dimension:700*900*1400 mm
quickly change:including

Features:

1) Crimps up to 2 inch 4 layers hydraulic hoses and 3 inch industrial hose
2)Quick change dies tool
3)Emergency stop to ensure the safe
4)Quick crimping and retracted process
5)High quality material and famous brands parts
6)Precision formed effect

hose press machine
hose press machine

Machine Head

Attribute: Forge Steel
Original: Germany Technology
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection
Original: HENGHUA(Patented)

Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent

Electromagnetic Valve

Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.

Control Panel

Attribute: CNC Operation Panel
Original: China(Mainland)
HHP52 crimping machine has equipped with computer numerical control operation panel which is more humanized than the ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.
hose press machine
hose press machine

Additional information

Model

P52

Crimping Range (Inner Diameter)

6~51mm ( 1/4~2" )

Free Dies

12 Sets (14 16 20 22 26 30 38 46 51 54 64 69)

Accuracy

0.01mm

Volume of oil tank

2.5L / 5L / 10L (Optional)

System Pressure

26MPa / 31.5MPa(Optional)

Motor Power

3kW (as your requirements)

Voltage

20V/240V/380V/415V (Optional)

Buckling Pressure

640T

Efficiency

250pcs/h

Maximum Open Diameter

114mm

The max open tolerance

± 30mm

Hydraulic oil

46#

Net Weight

350KG

Gross Weight

365KG

Package Dimension

700*900*1400 mm

quickly change

including
